Long lasting

Acoustic panels and sheets offer decorative, long-lasting and economical solutions. Using the rich color options in the Rai catalog adds difference to your spaces.

Advantageous

It provides comfortable and non-directional mounting with its sound absorption feature and different perforation options.

Economical

Sound Panels branded products come to the fore with their economics when compared to other products with acoustic properties.

Aesthetic

Acoustic gypsum panels can be easily mounted with white, black and channeled T 24 carrier profiles. Panels are easy to disassemble.

ACOUSTIC GYPSUM BOARD AND SHEET SYSTEMS

Yaprak

Delikli Sıra Dizilişli

Delikli Sıra Dizilişli

Delikli Şaşırtmalı Dizilişli

Delikli Sıra Dizilişli

Delikli Sıra Dizilişli

Delikli Şaşırtmalı Dizilişli

Technical details

Panel Type Gypsum board
Surface Unpainted and Vinyl Coated
Size (mm) 600×600,300×600,600×1200,1200×2400
Thickness 7mm,8mm,9,5mm,12,5mm
Plasterboard White, Green, Red, Bordeaux
Perforation (mm) Ø6 Row Sequence Ø10 Row Sequence Ø5-10 Row Sequence Ø6-12 Row Sequence 12 × 12 Row Sequence
Color All colors in Karopan PVC chart..
Acoustic Fabric Imported Fiberglass
Edge Surface Tapeless
Carrier system T24, T-15
System Seated
Sound Absorption Class  C
Fire Class  A2

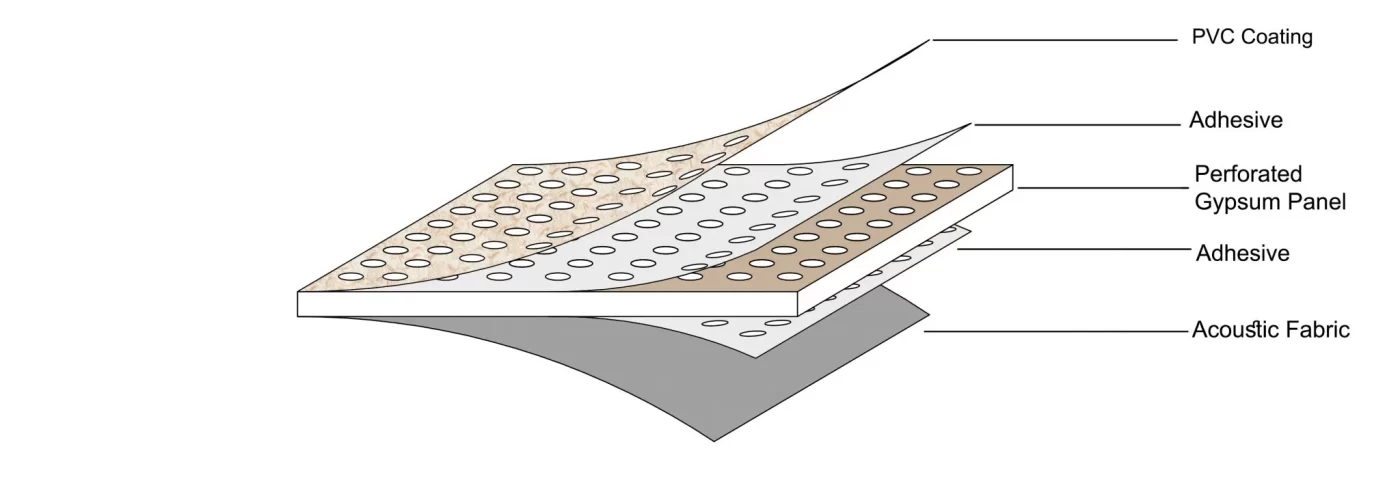

ACOUSTIC GYPSUM BOARD FEATURES

USAGE AREAS

Shopping malls
Airports
Conference Rooms
Cinema and Theater Halls
Schools and Universities
Cafes and Restaurants
Banks
Metro
Hospitals
Banks
Gyms
Social Facilities

Delivery Details

THICKNESS PACKAGE QUANTITY VOLUME QUANTITY OF PALLET
7mm 12 piece= 4,32m² 0,33 m³ / package 68 package = 293,76 m²
8mm 10 piece = 3,60 m² 0,33 m³ / package 68 package = 244,80 m²
9,5mm 8 piece = 2,88 m² 0,33 m³ / package 68 package = 195,84 m²
12,5mm 6 piece = 2,16 m² 0,33 m³ / package 68 package= 146,88 m²



Sound Panel Acoustic Applications
